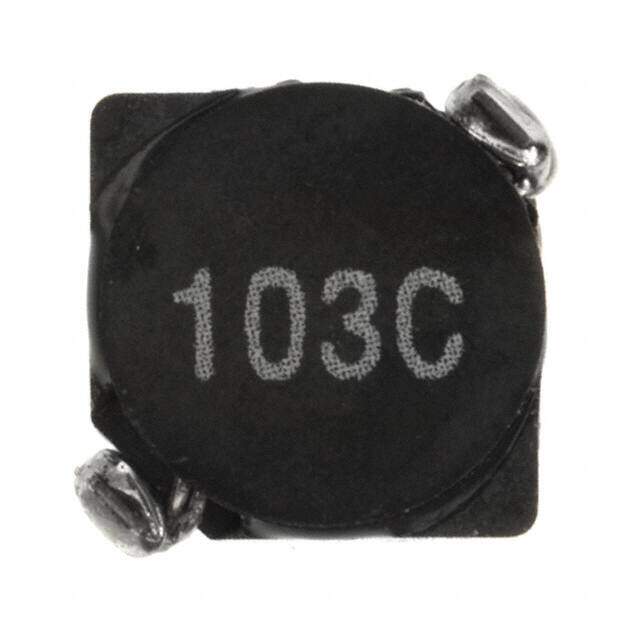

SPD127R-103M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SPD127R Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 10muH
PDF
/
Buying Options
Total Price: USD $5.5
Unit Price: USD $5.504529
≥1 USD $5.504529
≥10 USD $5.192954
≥100 USD $4.899011
≥500 USD $4.621709
≥1000 USD $4.3601
Inventory: 1164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series SPD127R
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 12.8mm
Construction Rectangular
Current Rating 5.4A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 40mOhm Max
Max DC Current 5.4A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 4747
Dimensions
Height 8.001mm
Height Seated (Max) 0.315 8.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
