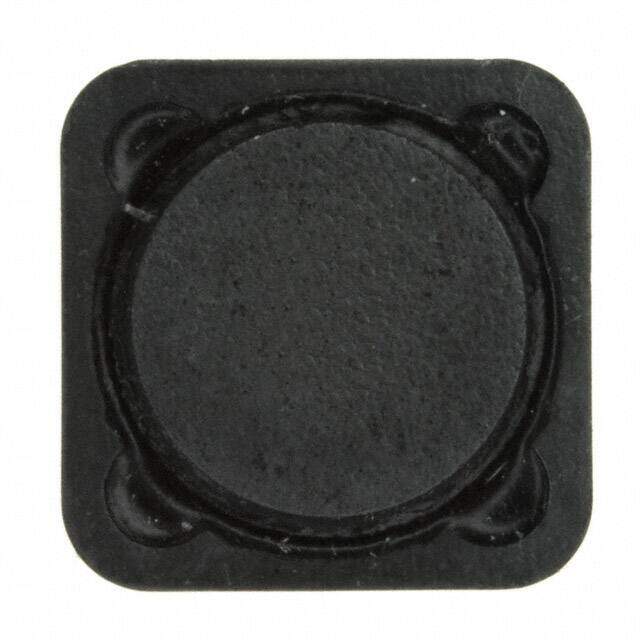

SPD125-474M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SPD125 Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 470muH
PDF
/
Inventory: 9236
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.236 6.00mm
Height 6mm
Technical
Case/Size Code 4747
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 600mA
DC Resistance (DCR) 820mOhm Max
Test Frequency 1kHz
Inductance 470μH
Current Rating 600mA
Depth 12.8mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Composition Wirewound
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Pbfree Code no
JESD-609 Code e0
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series SPD125
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
