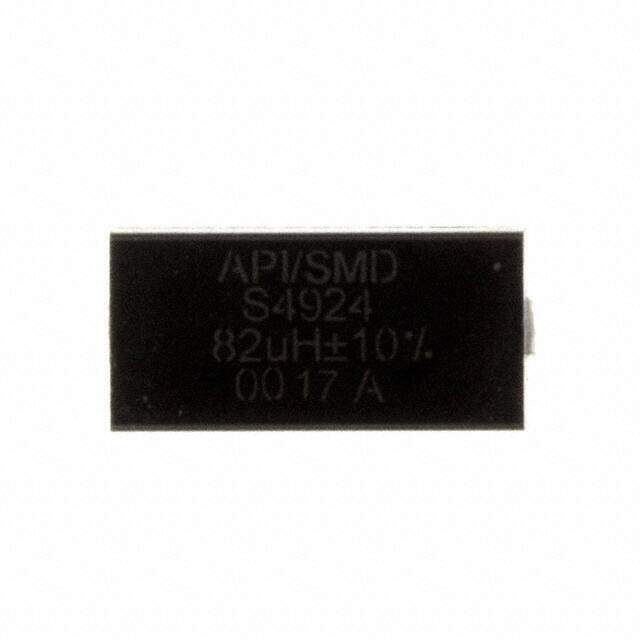

S4924-823K
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Active Contains Lead Fixed Inductor -55C~125C 10.5MHz 2.44Ohm Max 82muH
PDF
/
Inventory: 1982
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.220 5.58mm
Height 5.84mm
Technical
Case/Size Code 5225
Q Factor 50
Current - Saturation 120mA
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 50
Q @ Freq 50 @ 2.5MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 10.5MHz
Max DC Current 342mA
DC Resistance (DCR) 2.44Ohm Max
Test Frequency 2.5MHz
Inductance 82μH
Current Rating 342mA
Construction Rectangular
Depth 6.35mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±10%
Size / Dimension 0.505Lx0.240W 12.82mmx6.09mm
Series S4924
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 45 Weeks
