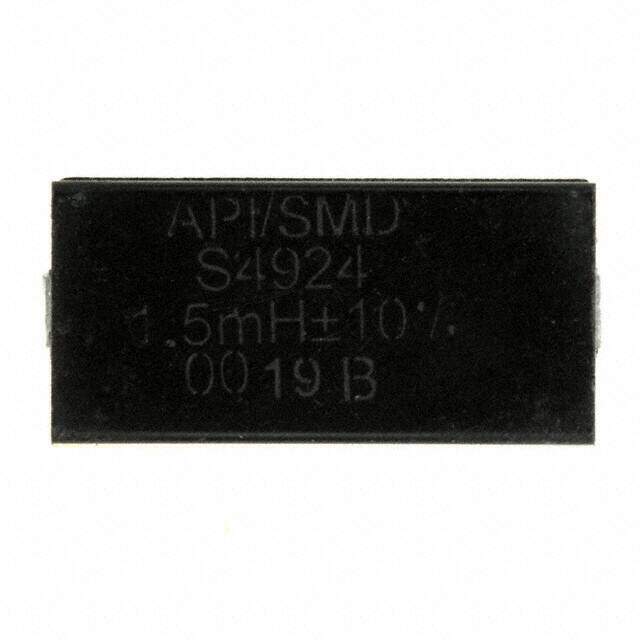

S4924-155K
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 1.5MH 115MA 26.5 OHM
PDF
/
Inventory: 9286
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 45 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2002
Series S4924
Size / Dimension 0.505Lx0.240W 12.82mmx6.09mm
Tolerance ±10%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn63Pb37)
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 6.35mm
Construction Rectangular
Current Rating 115mA
Inductance 1.5mH
Test Frequency 250kHz
DC Resistance (DCR) 26.5Ohm Max
Max DC Current 115mA
Frequency - Self Resonant 2.8MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 50 @ 250kHz
Quality Factor-Min (at L-nom) 50
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 27mA
Q Factor 50
Case/Size Code 5225
Dimensions
Height 5.84mm
Height Seated (Max) 0.220 5.58mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
