S1812-683F
RoHS
/
Package 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Active 2010 Tape & Reel (TR) fixed air core inductor -55C~125C 7.6MHz 4.3Ohm Max 68muH
PDF
/
Inventory: 2501
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812 (4532 Metric)
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series S1812
Size / Dimension 0.189Lx0.134W 4.80mmx3.40mm
Tolerance ±1%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Current Rating (Amps) 215mA
Shielding Shielded
Depth 3.4mm
Current Rating 215mA
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 68μH
Test Frequency 2.5MHz
DC Resistance (DCR) 4.3Ohm Max
Max DC Current 215mA
Frequency - Self Resonant 7.6MHz
Q @ Freq 50 @ 2.5MHz
Inductance Frequency - Test 2.5MHz
Q Factor 50
Dimensions
Height 3.4mm
Height Seated (Max) 0.134 3.40mm
Length 4.826mm
Width 3.4036mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant

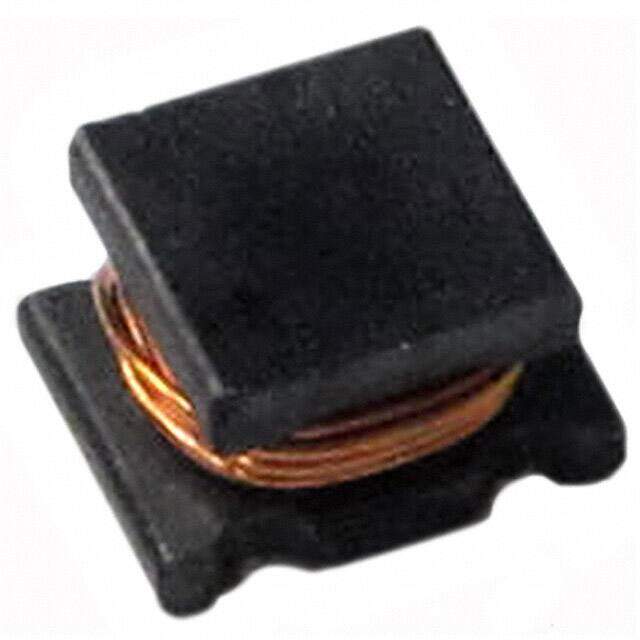

Alternative Model
