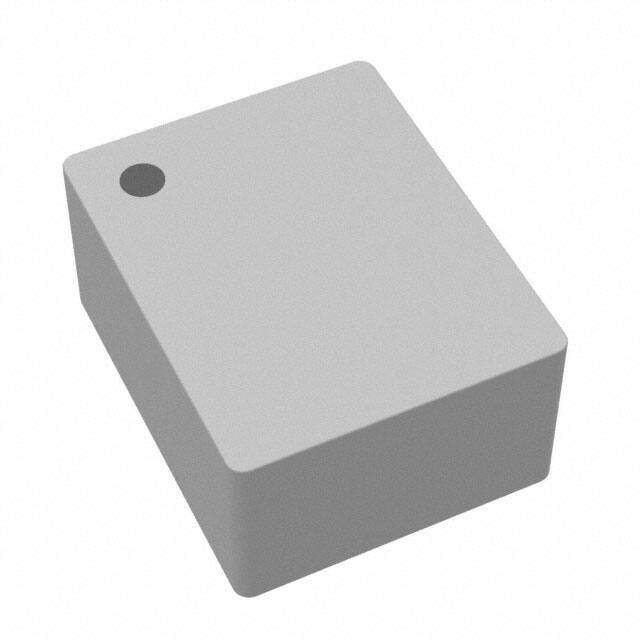

S1008R-103H image
Favorite
S1008R-103H image
Favorite

S1008R-103H

API Delevan Inc.
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description Fixed Inductors 10uH 3% 2.1ohm Shielded SMT Induc
PDF
/
Inventory: 2877
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.095 2.41mm
Height 2.41mm

Technical

Q Factor 30
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 30
Q @ Freq 30 @ 7.9MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 29MHz
Max DC Current 230mA
DC Resistance (DCR) 2.1Ohm Max
Test Frequency 7.9MHz
Inductance 10μH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 230mA
Depth 2.66mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±3%
Size / Dimension 0.115Lx0.105W 2.92mmx2.66mm
Series S1008R
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 45 Weeks
