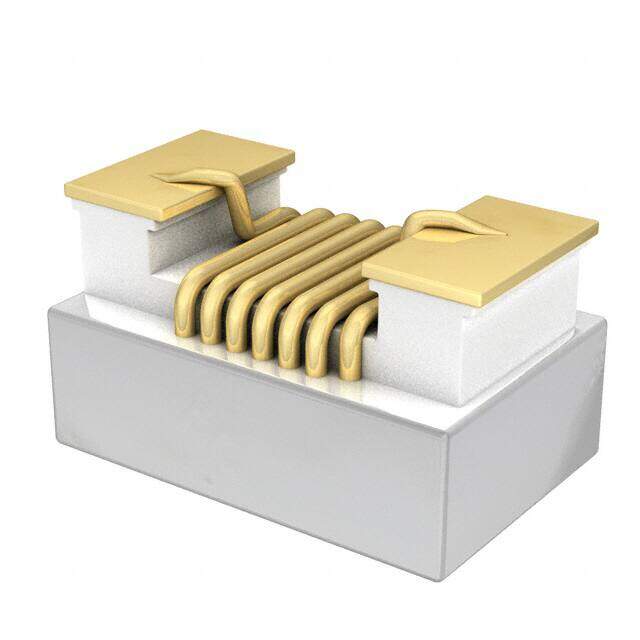

S0402-10NJ2B
RoHS
/
Package 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Wirewound Active ONE SURFACE fixed air core inductor -55C~125C 3.9GHz 210mOhm Max 10nH
PDF
/
Inventory: 4339
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.030 0.76mm
Technical
Rated Current-Max 0.475A
Inductance Frequency - Test 250MHz
Quality Factor-Min (at L-nom) 20
Q @ Freq 20 @ 250MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 3.9GHz
DC Resistance (DCR) 210mOhm Max
Test Frequency 250MHz
Inductance 10nH
Current Rating 475mA
Construction Rectangular
Number of Functions 1
Shielding NO
Terminal Finish Tin/Lead (Sn/Pb)
Type Wirewound
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±5%
Size / Dimension 0.043Lx0.025W 1.09mmx0.64mm
Series S0402
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Alumina
Terminal Shape ONE SURFACE
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
