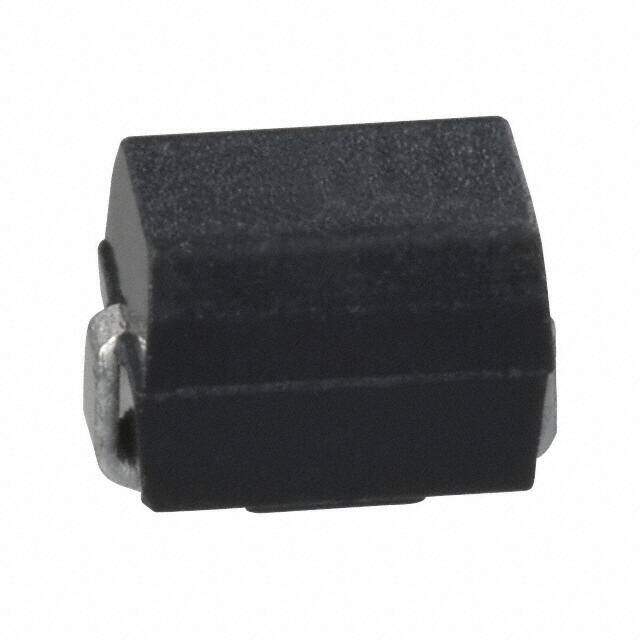

M83446/39-34F image
Favorite
M83446/39-34F image
Favorite

M83446/39-34F

API Delevan Inc.
RoHS
/
Package 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Active WRAPAROUND fixed air core inductor -55C~125C 33MHz 1.1Ohm Max 5.6muH
PDF
/
Buying Options
Total Price: USD $5.54
Unit Price: USD $5.544
≥1 USD $5.544
≥10 USD $4.49064
≥100 USD $3.99168
≥500 USD $3.76992
≥1000 USD $3.492632
≥3000 USD $3.43721
Inventory: 1098
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.134 3.40mm
Height 3.4mm

Technical

Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 7.9MHz
Quality Factor-Min (at L-nom) 50
Q @ Freq 50 @ 7.9MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 33MHz
Max DC Current 427mA
DC Resistance (DCR) 1.1Ohm Max
Test Frequency 7.9MHz
Inductance 5.6μH
Depth 3.4mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±5%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series Military, MIL-PRF-39010, M83446/39
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
