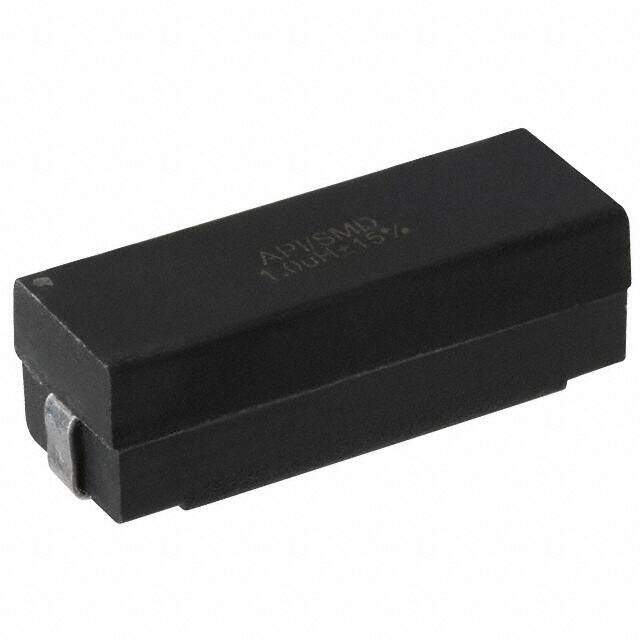

8532-25L
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8532 Nonstandard 0.860Lx0.320W 21.84mmx8.12mm 100muH
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.5792
≥1 USD $5.5792
≥10 USD $4.52144
≥100 USD $4.018784
≥500 USD $3.795616
≥1000 USD $3.51648
Inventory: 498
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.286 7.26mm
Height 7.2644mm
Technical
Current - Saturation 640mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.3A
DC Resistance (DCR) 208mOhm Max
Test Frequency 1kHz
Inductance 100μH
Current Rating 1.3A
Construction Chip
Depth 8.38mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Tolerance ±15%
Size / Dimension 0.860Lx0.320W 21.84mmx8.12mm
Series 8532
Published 2010
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 2.5g
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
