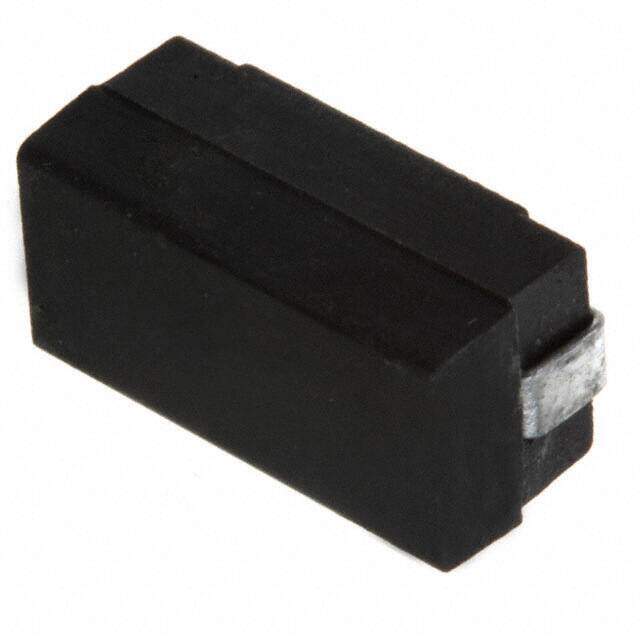

5022-333H
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
5022 Nonstandard 0.520Lx0.250W 13.21mmx6.35mm 33muH
PDF
/
Inventory: 2105
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.230 5.80mm
Height 5.84mm
Technical
Case/Size Code 5024
Q Factor 65
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 65
Q @ Freq 65 @ 2.5MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 19MHz
Max DC Current 337mA
DC Resistance (DCR) 3Ohm Max
Test Frequency 2.5MHz
Inductance 33μH
Current Rating 337mA
Construction Epoxy Molded
Depth 6.35mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±3%
Size / Dimension 0.520Lx0.250W 13.21mmx6.35mm
Series 5022
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 45 Weeks
