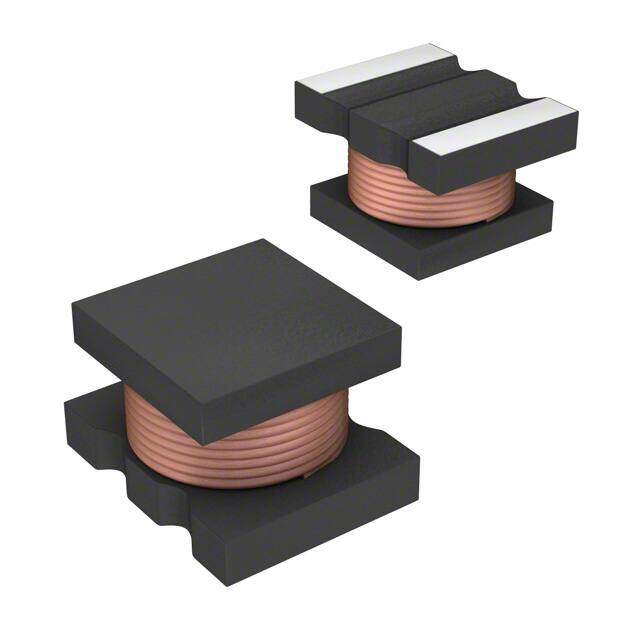

4922R-30K
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active WRAPAROUND Fixed Inductor -55C~125C 1kHz 1.77Ohm Max 270muH
PDF
/
Inventory: 9607
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.230 5.84mm
Height 5.84mm
Technical
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 470mA
DC Resistance (DCR) 1.77Ohm Max
Test Frequency 1kHz
Inductance 270μH
Current Rating 470mA
Construction Epoxy Molded
Depth 6.35mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.520Lx0.250W 13.21mmx6.35mm
Series 4922R
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 45 Weeks
