4922R-24L
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Lead Free Fixed Inductor -55C~125C 1kHz 604mOhm Max 82muH
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.7664
≥1 USD $3.7664
≥10 USD $3.15216
≥100 USD $2.877952
≥500 USD $2.466992
≥1000 USD $2.261336
≥3000 USD $2.192854
Inventory: 1168
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.096mm
Length 12.827mm
Height Seated (Max) 0.230 5.84mm
Height 5.84mm
Technical
Current - Saturation 810mA
Inductance Frequency - Test 1kHz
Max DC Current 810mA
DC Resistance (DCR) 604mOhm Max
Test Frequency 1kHz
Inductance 82μH
Current Rating 810mA
Depth 6.35mm
Shielding Unshielded
Current Rating (Amps) 810mA
Composition Wirewound
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.505Lx0.240W 12.82mmx6.09mm
Series 4922R
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 45 Weeks

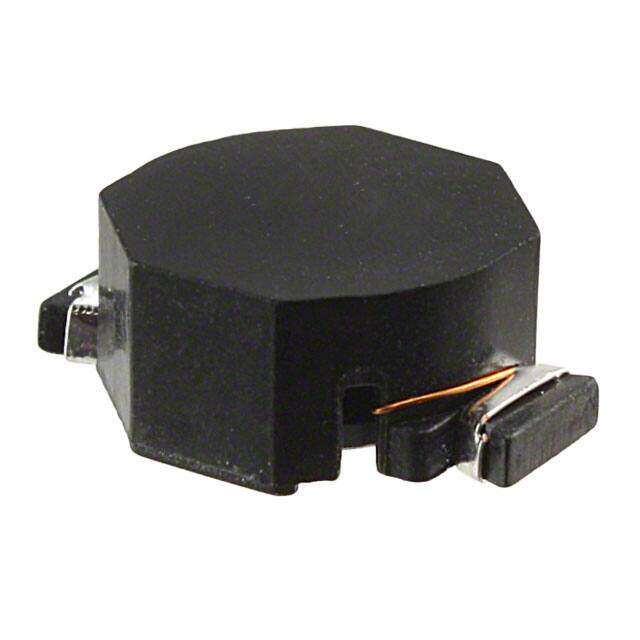

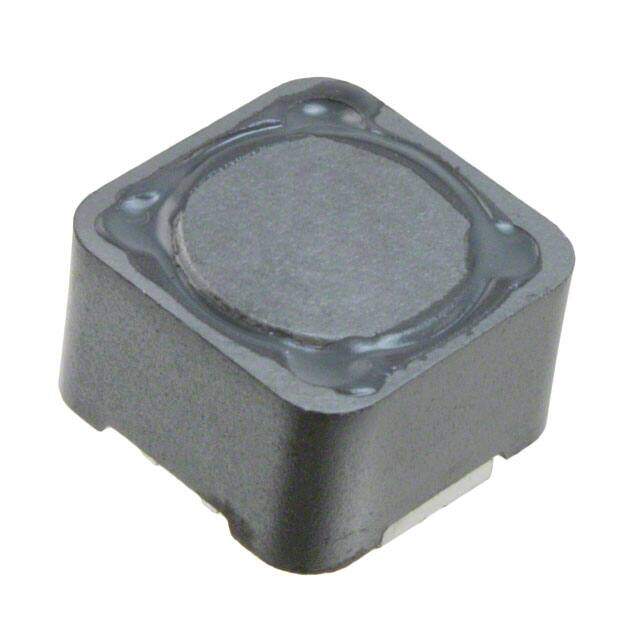

Alternative Model
