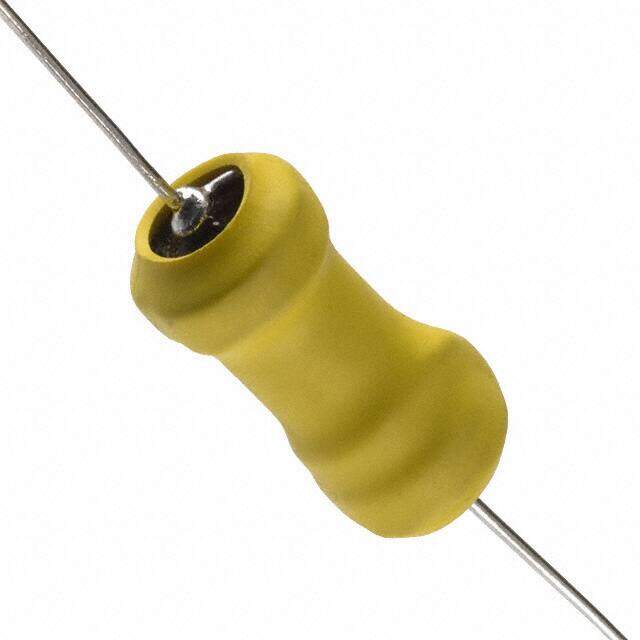

4590R-684K image
Favorite
4590R-684K image
Favorite

4590R-684K

API Delevan Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 4590R Axial 0.455Diax0.900L 11.55mmx22.86mm 680muH
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.532
≥1 USD $4.532
≥10 USD $3.7884
≥100 USD $3.458752
≥500 USD $2.964544
≥1000 USD $2.71744
≥3000 USD $2.635107
Inventory: 526
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series 4590R
Size / Dimension 0.455Diax0.900L 11.55mmx22.86mm
Tolerance ±10%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Copper (Sn99.3Cu0.7)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Tubular
Current Rating 1.08A
Lead Length 27.9mm
Inductance 680μH
Test Frequency 1kHz
DC Resistance (DCR) 570mOhm Max
Max DC Current 1.08A
Inductor Application POWER INDUCTOR
Current - Saturation 670mA
Self Resonant Frequency 1kHz

Dimensions

Diameter 11.6mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
