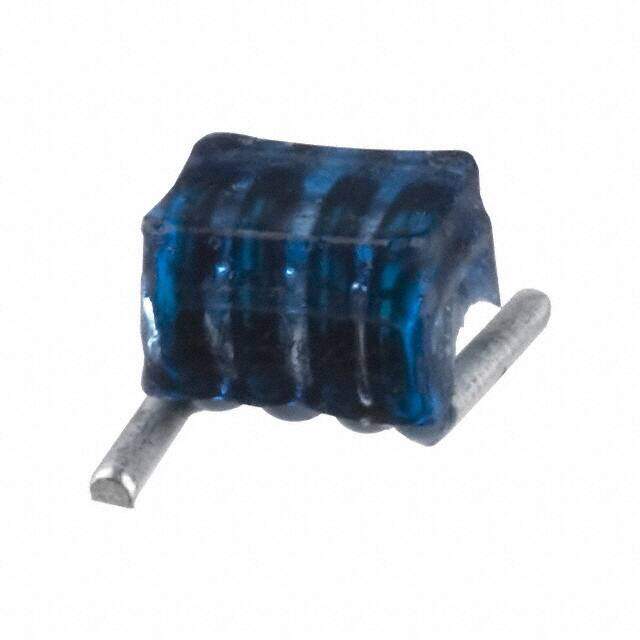

4426-8 image
Favorite
4426-8 image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Non-RoHS Compliant Wirewound Active Contains Lead fixed air core inductor -55C~125C 2.6GHz 75mOhm 28nH
PDF
/
Buying Options
Total Price: USD $2.44
Unit Price: USD $2.4376
≥1 USD $2.4376
≥10 USD $2.07152
≥100 USD $1.908896
≥500 USD $1.705968
≥1000 USD $1.42164
Inventory: 121
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Air
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2002
Series 4426
Size / Dimension 0.270Lx0.120W 6.86mmx3.05mm
Tolerance ±5%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Lead (Sn90Pb10)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 3.05mm
Construction Rectangular
Current Rating 3A
Inductance 28nH
Test Frequency 150MHz
DC Resistance (DCR) 75mOhm
Max DC Current 3A
Frequency - Self Resonant 2.6GHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 105 @ 150MHz
Quality Factor-Min (at L-nom) 105
Q Factor 105
Case/Size Code 2712

Dimensions

Height 3.18mm
Height Seated (Max) 0.125 3.18mm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
