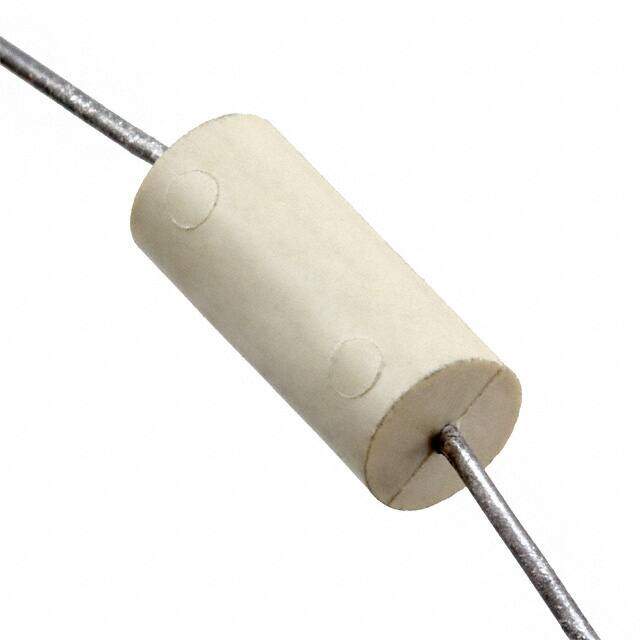

2500-28J
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Molded Active Axial fixed air core inductor -55C~105C 2.8MHz 16.5Ohm Max 1mH
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.64
≥1 USD $2.64
≥10 USD $2.20616
≥100 USD $2.013792
≥500 USD $1.726208
≥1000 USD $1.582416
≥3000 USD $1.534438
Inventory: 739
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Material - Core Iron
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2002
Series Military, MIL-PRF-M15305, MS90539
Size / Dimension 0.190Diax0.440L 4.83mmx11.18mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Axial
Type Molded
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Current Rating (Amps) 88mA
Shielding Unshielded
Current Rating 88mA
Lead Length 36.6mm
Inductance 1mH
Test Frequency 790kHz
DC Resistance (DCR) 16.5Ohm Max
Max DC Current 88mA
Frequency - Self Resonant 2.8MHz
Q @ Freq 60 @ 790kHz
Lead/Base Style Axial
Inductance Frequency - Test 790kHz
Q Factor 60
Dimensions
Diameter 4.83mm
Height 4.83mm
Length 11.176mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
