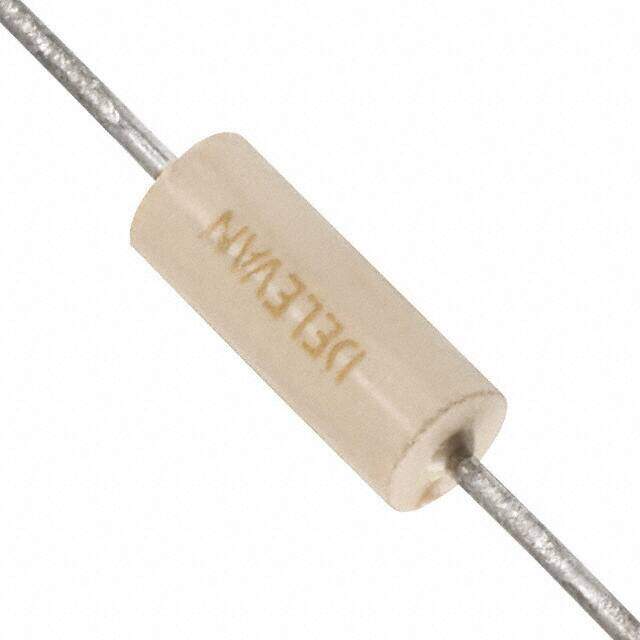

1641R-562K image
Favorite
1641R-562K image
Favorite

1641R-562K

API Delevan Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 1641R Axial 0.162Diax0.410L 4.11mmx10.41mm 5.6muH
PDF
/
Inventory: 4734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Diameter 4.11mm

Technical

Q Factor 44
Quality Factor-Min (at L-nom) 44
Q @ Freq 44 @ 7.9MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 65MHz
Max DC Current 340mA
DC Resistance (DCR) 720mOhm Max
Test Frequency 7.9MHz
Inductance 5.6μH
Lead Length 36.58mm
Reference Standard MS75088
Current Rating 340mA
Construction Tubular
Number of Functions 1
Shielding YES
Packing Method TR, 14 INCH
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Molded
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Last Time Buy
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.162Diax0.410L 4.11mmx10.41mm
Series 1641R
Published 2010
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shape/Size Description TUBULAR PACKAGE
Material - Core Iron
Weight 1g
Terminal Shape WIRE
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
