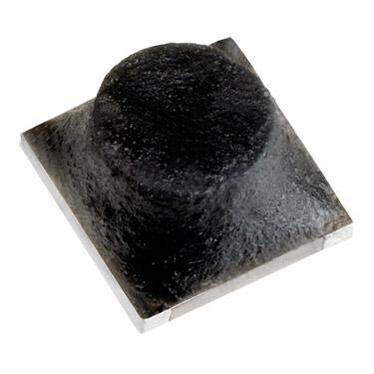

160-221JS
RoHS
/
Package 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors .22uH 5% .11ohm Chip SMT Inductor
PDF
/
Inventory: 2186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.080 2.03mm
Height 2.03mm
Technical
Q Factor 50
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 50
Q @ Freq 50 @ 25MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 340MHz
Max DC Current 1.07A
DC Resistance (DCR) 110mOhm Max
Test Frequency 25MHz
Inductance 220nH
Current Rating 1.07A
Construction Chip
Depth 3.18mm
Number of Functions 1
Shielding Unshielded
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±5%
Size / Dimension 0.150Lx0.120W 3.81mmx3.05mm
Series 160
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
