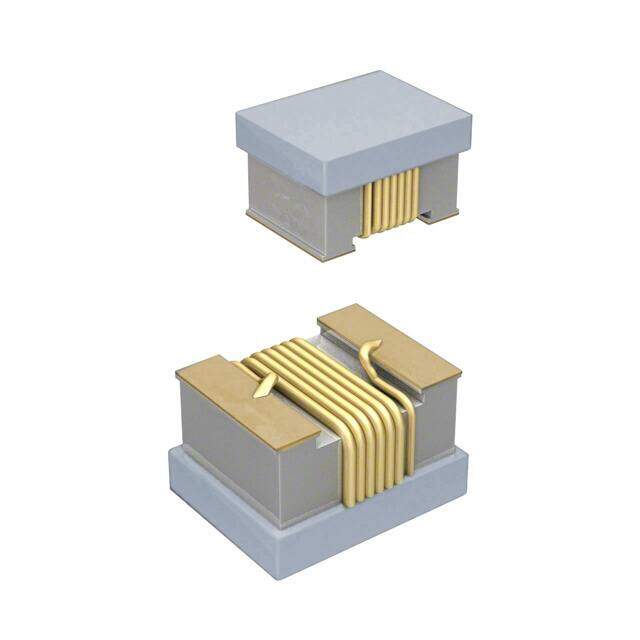

1210-101K image
Favorite
1210-101K image
Favorite

1210-101K

API Delevan Inc.
RoHS
/
Package 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description 1210 1210 (3225Metric) 0.128Lx0.095W 3.25mmx2.42mm 100nH
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.890915
≥1 USD $1.890915
≥10 USD $1.78388
≥100 USD $1.682903
≥500 USD $1.587648
≥1000 USD $1.497781
Inventory: 1252
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.101 2.57mm
Height 2.57mm

Technical

Q Factor 30
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 30
Q @ Freq 30 @ 25MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 550MHz
Max DC Current 1.018A
DC Resistance (DCR) 200mOhm Max
Test Frequency 25MHz
Inductance 100nH
Case Code (Metric) 3225
Current Rating 1.018A
Construction Rectangular
Depth 2.67mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±10%
Size / Dimension 0.128Lx0.095W 3.25mmx2.42mm
Series 1210
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Weight 15.989131mg
Terminal Shape J BEND
Package / Case 1210 (3225 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
