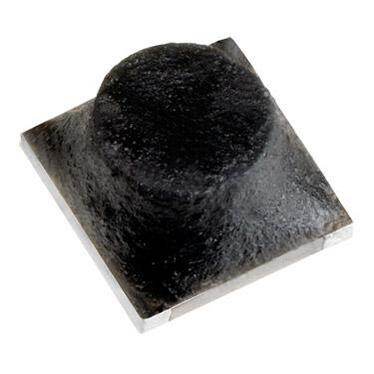

105-561G
RoHS
/
Package Nonstandard, 2 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors .56uH 2% .45ohm SMT RF Inductor
PDF
/
Inventory: 2003
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Inductor Type GENERAL PURPOSE INDUCTOR
Q Factor 35
Case/Size Code 1010
Quality Factor-Min (at L-nom) 35
Q @ Freq 35 @ 25MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 163MHz
Max DC Current 460mA
DC Resistance (DCR) 450mOhm Max
Test Frequency 25MHz
Inductance 560nH
Current Rating 460mA
Construction Epoxy Encapsulated
Depth 2.79mm
Number of Functions 1
Shielding NO
Packing Method TR, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e4
Tolerance ±2%
Size / Dimension 0.100Lx0.100W 2.54mmx2.54mm
Series 105
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Dimensions
Height 1.91mm
Height Seated (Max) 0.075 1.91mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard, 2 Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
