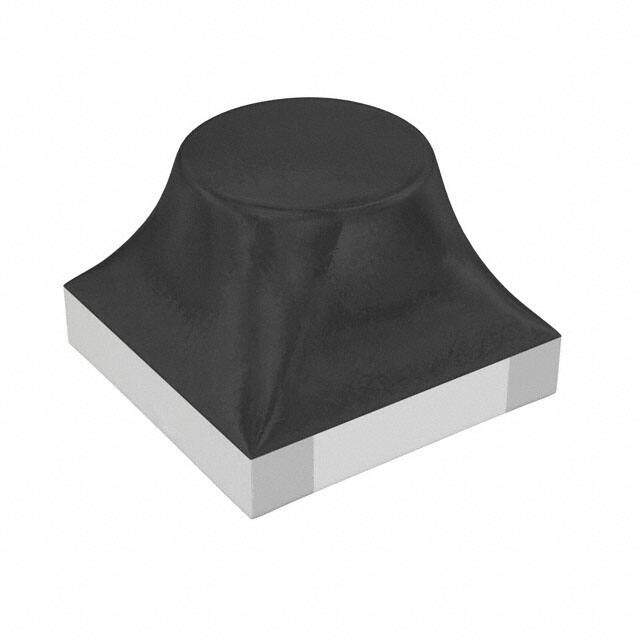

103-822F
RoHS
/
Package Nonstandard, 2 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors 8.2uH 1% 2.5ohm Chip SMT RF Ind
PDF
/
Buying Options
Total Price: USD $68.52
Unit Price: USD $68.516312
≥1 USD $68.516312
≥200 USD $27.338517
≥500 USD $26.424738
≥1000 USD $25.973101
Inventory: 7348
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard, 2 Lead
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series 103
Size / Dimension 0.100Lx0.100W 2.54mmx2.54mm
Tolerance ±1%
JESD-609 Code e4
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding NO
Number of Functions 1
Depth 2.79mm
Construction Chip
Current Rating 195mA
Inductance 8.2μH
Test Frequency 7.9MHz
DC Resistance (DCR) 2.5Ohm Max
Max DC Current 195mA
Frequency - Self Resonant 48MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 22 @ 7.9MHz
Quality Factor-Min (at L-nom) 22
Inductor Type GENERAL PURPOSE INDUCTOR
Q Factor 22
Case/Size Code 1010
Dimensions
Height 1.91mm
Height Seated (Max) 0.075 1.91mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
