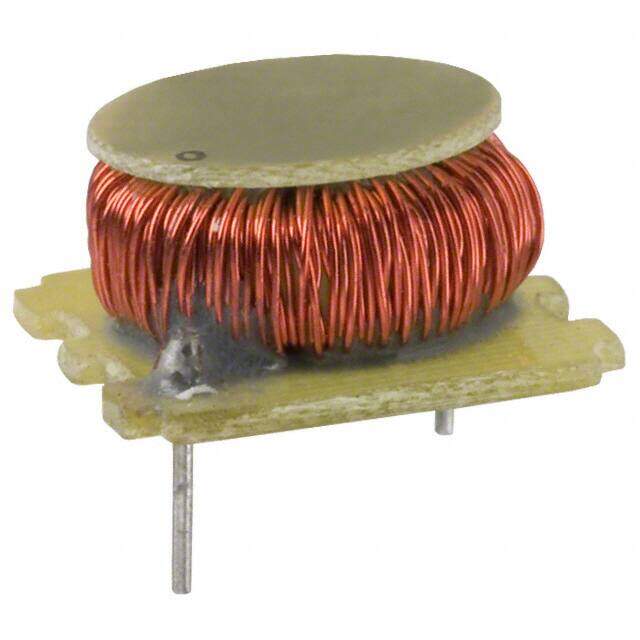

SWT-0.46-78
RoHS
/
Package Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Toroidal Obsolete Bulk Fixed Inductor -40C~125C 10kHz 800mOhm 78muH
PDF
/
Inventory: 4078
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series SW
Size / Dimension 0.339Lx0.339W 8.60mmx8.60mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 460mA
Shielding Unshielded
Current Rating 460mA
Inductance 78μH
Test Frequency 10kHz
DC Resistance (DCR) 800mOhm
Inductance Frequency - Test 10kHz
Dimensions
Height 5.4864mm
Height Seated (Max) 0.217 5.50mm
Length 8.6106mm
Width 8.6106mm
Compliance
RoHS Status RoHS Compliant
