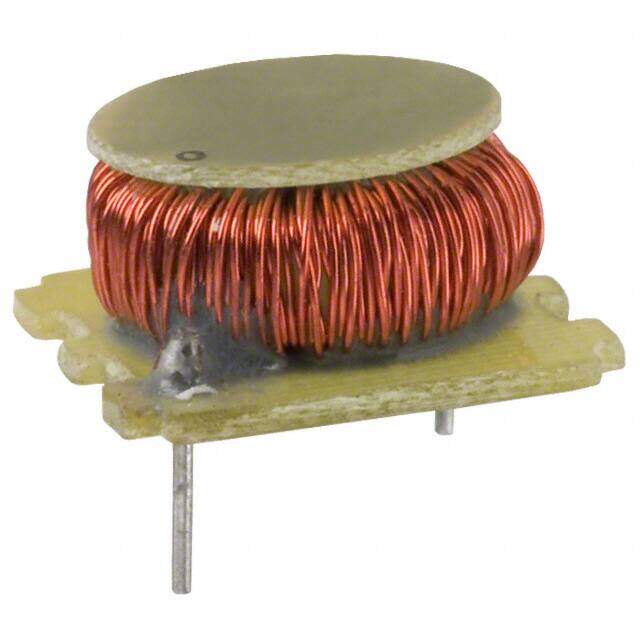

SWT-0.44-252
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Toroidal Active Bulk Toroidal Inductor -40C~125C 10kHz 900mOhm 252muH
PDF
/
Inventory: 1484
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 12.7762mm
Length 12.7762mm
Height Seated (Max) 0.307 7.80mm
Height 7.7978mm
Technical
Inductance Frequency - Test 10kHz
DC Resistance (DCR) 900mOhm
Test Frequency 10kHz
Inductance 252μH
Current Rating 440mA
Shielding Unshielded
Current Rating (Amps) 440mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.504Lx0.504W 12.80mmx12.80mm
Series SW
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Powder
Package / Case Radial, Horizontal (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
