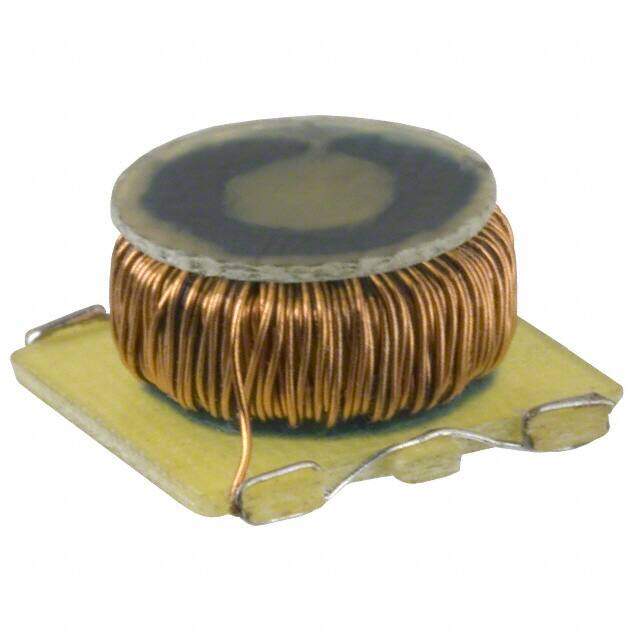

SWS-0.44-252

Amgis, LLC
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 252UH 440MA 900 MOHM
PDF
/
Inventory: 1837
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 12.7762mm
Length 12.8016mm
Height Seated (Max) 0.285 7.25mm
Height 7.0104mm

Technical

Inductance Frequency - Test 10kHz
DC Resistance (DCR) 900mOhm
Test Frequency 10kHz
Inductance 252μH
Current Rating 440mA
Shielding Unshielded
Current Rating (Amps) 440mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Toroidal
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Tolerance ±20%
Size / Dimension 0.504Lx0.504W 12.80mmx12.80mm
Series SW
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
