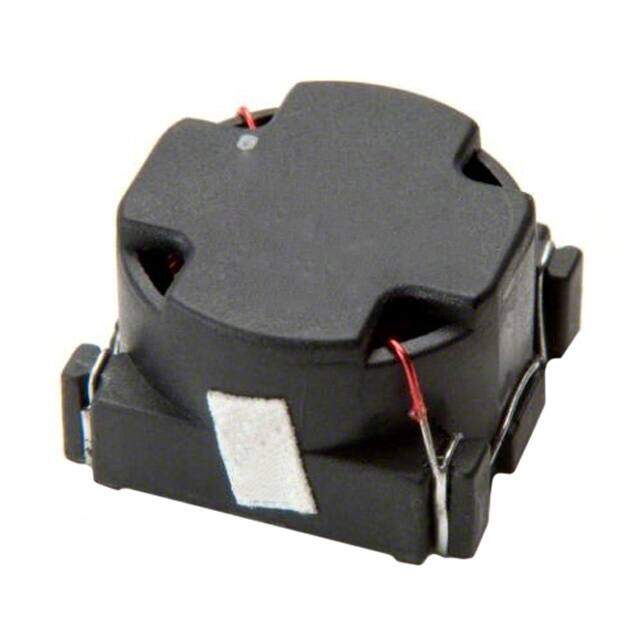

SH50S-0.85-680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 680UH 850MA 1.25 OHM
PDF
/
Buying Options
Total Price: USD $5.16
Unit Price: USD $5.1568
≥1 USD $5.1568
≥10 USD $4.1756
≥100 USD $3.711488
≥500 USD $3.505392
≥1000 USD $3.24764
Inventory: 888
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SH50
Size / Dimension 0.701Lx0.669W 17.80mmx17.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 850mA
Shielding Unshielded
Current Rating 850mA
Inductance 680μH
Test Frequency 10kHz
DC Resistance (DCR) 1.25Ohm Max
Inductance Frequency - Test 10kHz
Dimensions
Height Seated (Max) 0.451 11.45mm
Length 17.8054mm
Width 16.9926mm
Compliance
RoHS Status ROHS3 Compliant

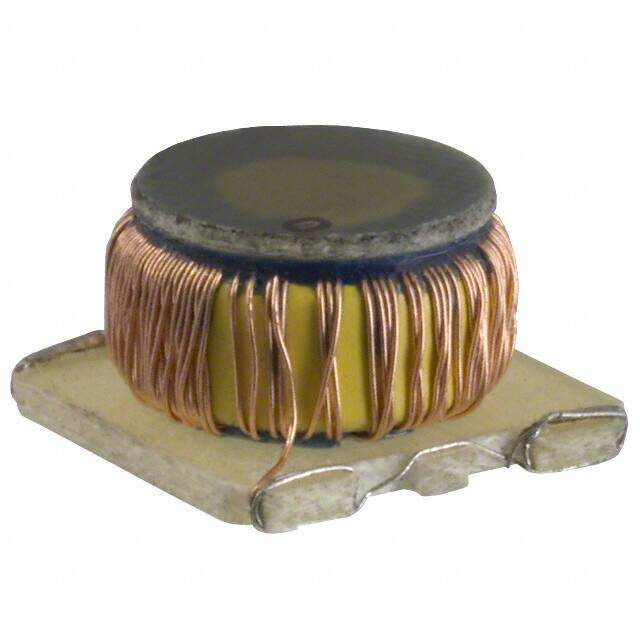

Alternative Model
