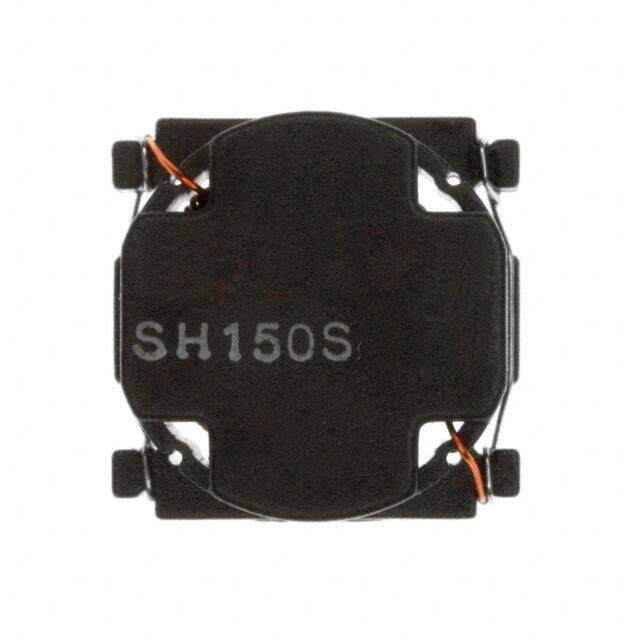

SH150S-0.44-252
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Toroidal Active Tape & Reel (TR) Fixed Inductor -40C~125C 10kHz 900mOhm 252muH
PDF
/
Inventory: 5395
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 13.9954mm
Length 14.1986mm
Height Seated (Max) 0.337 8.55mm
Height 8.3058mm
Technical
Inductance Frequency - Test 10kHz
DC Resistance (DCR) 900mOhm
Test Frequency 10kHz
Inductance 252μH
Current Rating 440mA
Shielding Unshielded
Current Rating (Amps) 440mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Toroidal
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Tolerance ±20%
Size / Dimension 0.559Lx0.551W 14.20mmx14.00mm
Series SH150
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
