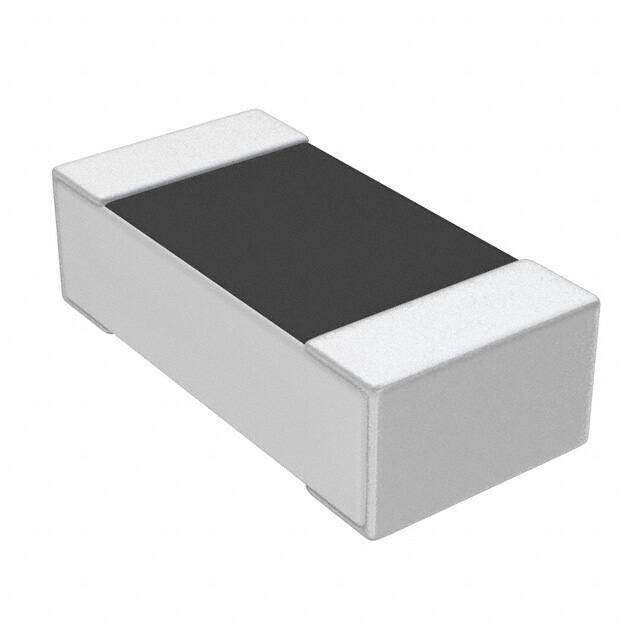

ATFC-0603-15N-FT
RoHS
/
Package 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ATFC-0603 0603 (1608Metric) 0.063Lx0.031W 1.60mmx0.80mm 15nH
PDF
/
Inventory: 3430
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Weight 2.012816mg
Material - Core Ceramic
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series ATFC-0603
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±1%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Thin Film
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Composition Thin Film
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 900μm
Current Rating 300mA
Case Code (Metric) 1608
Case Code (Imperial) 0603
Inductance 15nH
Test Frequency 300MHz
DC Resistance (DCR) 1.35Ohm Max
Max DC Current 300mA
Frequency - Self Resonant 3GHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 15 @ 300MHz
Quality Factor-Min (at L-nom) 15
Inductance Frequency - Test 300MHz
Q Factor 15
Dimensions
Height 450μm
Height Seated (Max) 0.022 0.55mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
