ATCA-01-101M-V
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

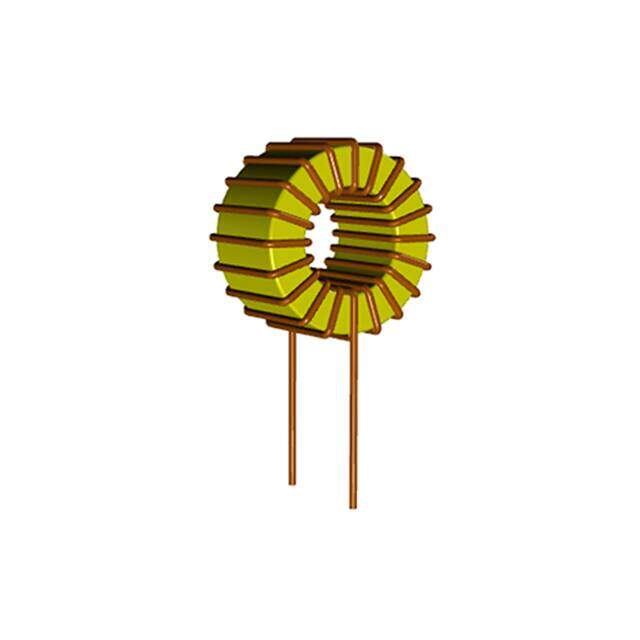

ABRACON ATCA-01-101M-V INDUCTOR, 100UH, 2A, 20%, RADIALNew
PDF
/
Buying Options
Total Price: USD $1.76
Unit Price: USD $1.76
≥1 USD $1.76
≥10 USD $1.49248
≥100 USD $1.375616
≥500 USD $1.22936
≥1000 USD $1.030594
Inventory: 475
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Technical
RMS Current (Irms) 2A
Inductance Tolerance 20%
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 81mOhm Max
Inductance 100μH
Shielding Unshielded
Current Rating (Amps) 2A
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.709Lx0.453W 18.00mmx11.50mm
Series ATCA
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Material - Core Iron Powder
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 7 Weeks
