ATCA-01-101M-H
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

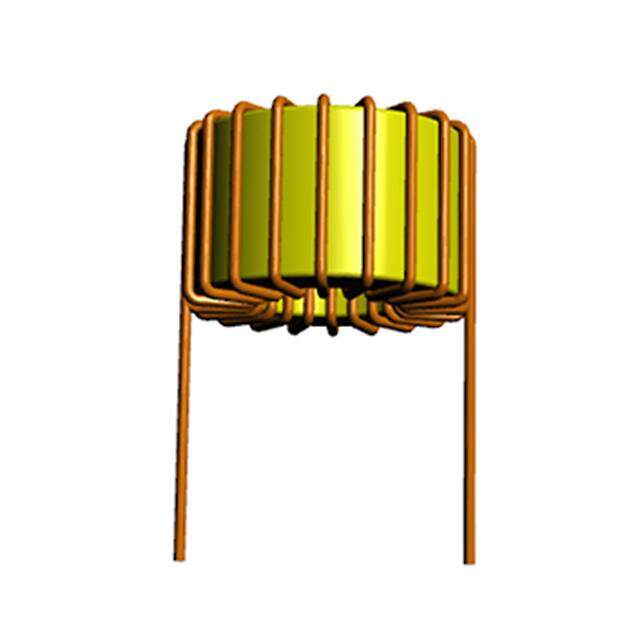

ABRACON ATCA-01-101M-H INDUCTOR, 100UH, 2A, 20%, RADIALNew
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.721989
≥1 USD $2.721989
≥10 USD $2.567912
≥100 USD $2.422558
≥500 USD $2.285439
≥1000 USD $2.15607
Inventory: 5823
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.453 11.50mm
Technical
RMS Current (Irms) 2A
Inductance Tolerance 20%
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 81mOhm Max
Inductance 100μH
Shielding Unshielded
Current Rating (Amps) 2A
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.709Dia 18.00mm
Series ATCA
Published 2016
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Material - Core Iron Powder
Package / Case Radial, Horizontal (Open)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 7 Weeks
