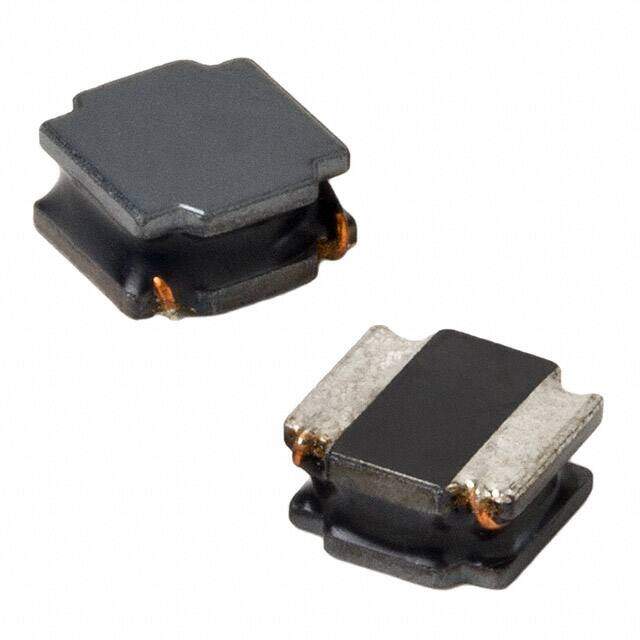

ASPI-3012S-100M-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ASPI-3012S Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.27104
≥100 USD $0.250272
≥500 USD $0.229328
≥1000 USD $0.202224
≥3000 USD $0.195994
Inventory: 660
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series ASPI-3012S
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 830mA
Shielding Shielded
Current Rating 830mA
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 265mOhm
Frequency - Self Resonant 42MHz
Inductance Frequency - Test 100kHz
Current - Saturation 600mA
Dimensions
Height 1.2mm
Height Seated (Max) 0.055 1.40mm
Length 3mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
