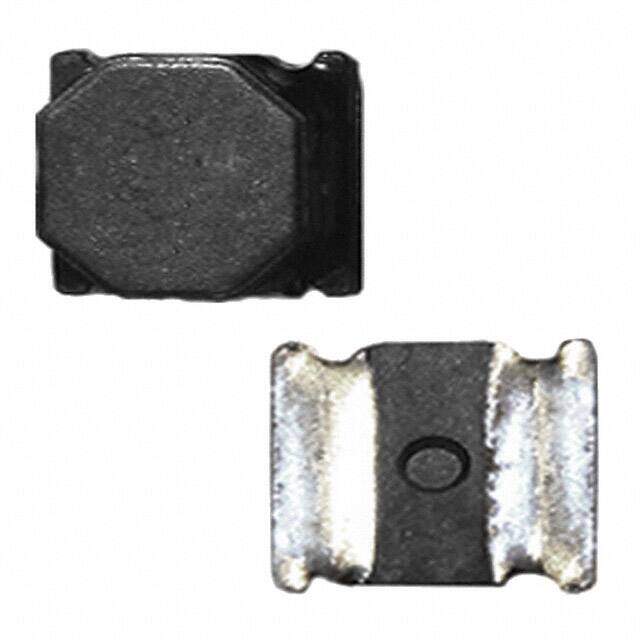

ASPI-2515-1R5N-T2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ASPI-2515 Nonstandard 0.098Lx0.079W 2.50mmx2.00mm 1.5muH
PDF
/
Inventory: 4459
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -25°C~120°C
Packaging Tape & Reel (TR)
Published 2009
Series ASPI-2515
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Shielding Shielded
Current Rating 1.8A
Inductance 1.5μH
Test Frequency 100kHz
DC Resistance (DCR) 67mOhm
Max DC Current 1A
Current - Saturation 2A
Dimensions
Height 1.5mm
Height Seated (Max) 0.059 1.50mm
Compliance
RoHS Status RoHS Compliant
