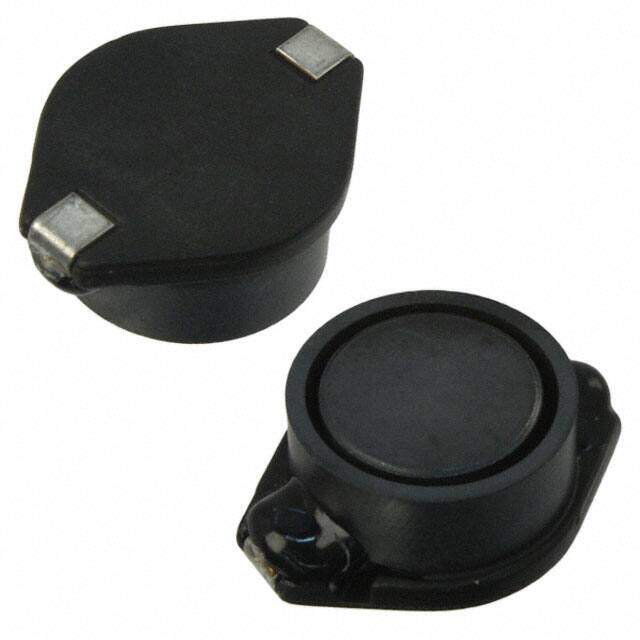

ASPI-1306S-151M-T image
Favorite

ASPI-1306S-151M-T

Abracon LLC
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ASPI-1306S Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 150muH
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.13784
≥100 USD $1.034176
≥500 USD $0.972048
≥1000 USD $0.80652
Inventory: 212
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.300 7.62mm
Height 7.62mm

Technical

Current - Saturation 2.1A
Inductance Frequency - Test 100kHz
Max DC Current 1.3A
DC Resistance (DCR) 293mOhm Max
Test Frequency 100kHz
Inductance 150μH
Current Rating 1.3A
Depth 15.24mm
Shielding Shielded
Current Rating (Amps) 1.3A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series ASPI-1306S
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
