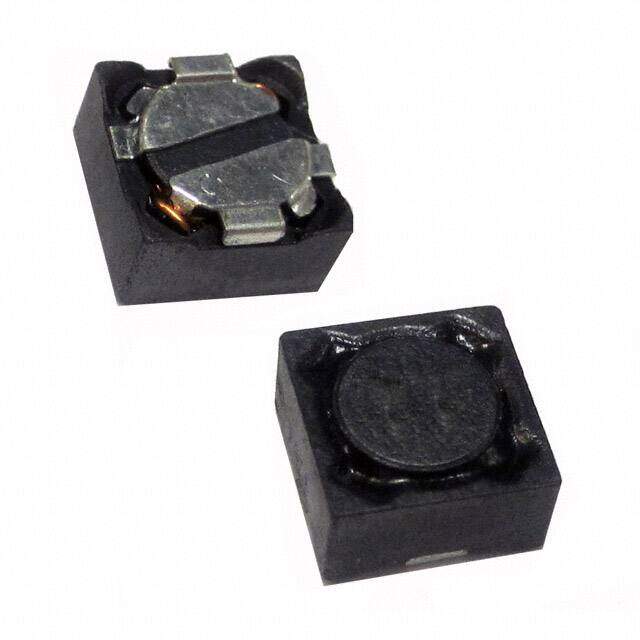

ASPI-0704S-100M-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ASPI-0704S Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 10muH
PDF
/
Buying Options
Total Price: USD $1.01
Unit Price: USD $1.012
≥1 USD $1.012
≥10 USD $0.858
≥100 USD $0.780384
≥500 USD $0.733568
≥1000 USD $0.608608
≥3000 USD $0.561827
Inventory: 1278
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series ASPI-0704S
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.84A
Shielding Shielded
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 49mOhm
Max DC Current 1.84A
Inductance Frequency - Test 100kHz
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Length 7.3mm
Width 7.3mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
