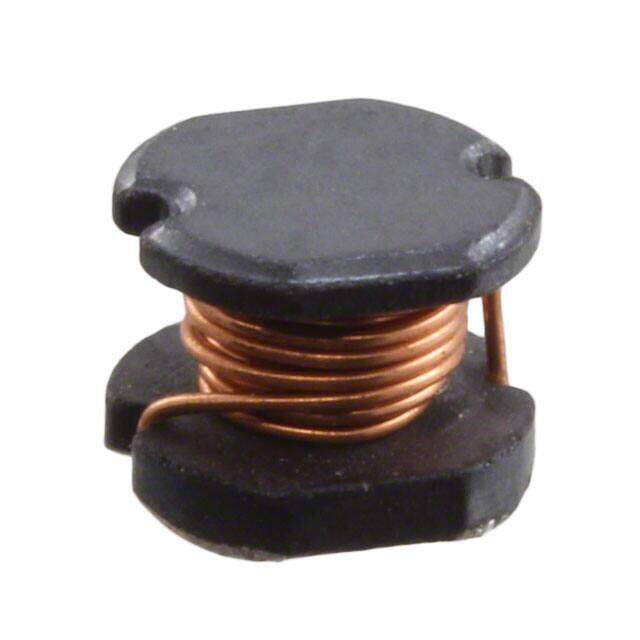

ASPI-0504-150K-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ASPI-0504 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 15muH
PDF
/
Inventory: 983
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2009
Series ASPI-0504
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 1.3A
Inductance 15μH
Test Frequency 2.52MHz
DC Resistance (DCR) 140mOhm Max
Inductance Frequency - Test 2.52MHz
Dimensions
Height Seated (Max) 0.177 4.50mm
Compliance
RoHS Status RoHS Compliant
