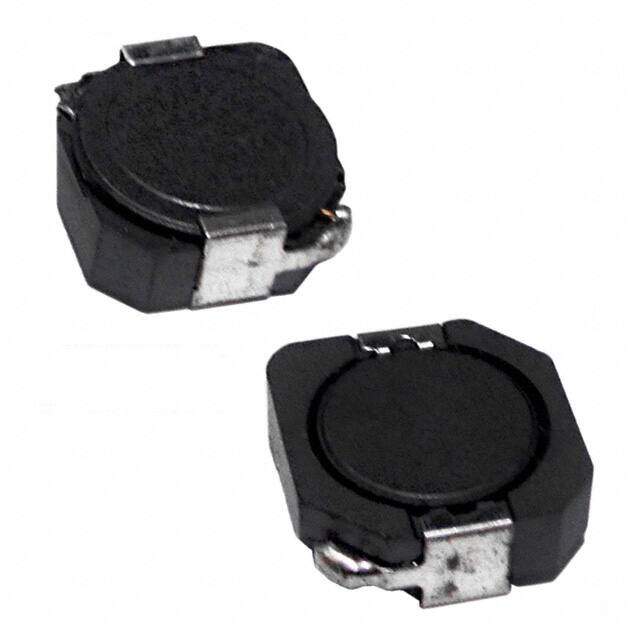

ASPI-0428S-181M-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ASPI-0428S Nonstandard 0.185Lx0.185W 4.70mmx4.70mm 180muH
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.597825
≥1 USD $0.597825
≥10 USD $0.497097
≥100 USD $0.447387
≥500 USD $0.397678
≥1000 USD $0.312648
Inventory: 1123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2009
Series ASPI-0428S
Size / Dimension 0.185Lx0.185W 4.70mmx4.70mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Current Rating 220mA
Inductance 180μH
Test Frequency 100kHz
DC Resistance (DCR) 1.54Ohm Max
Max DC Current 220mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 1919
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
