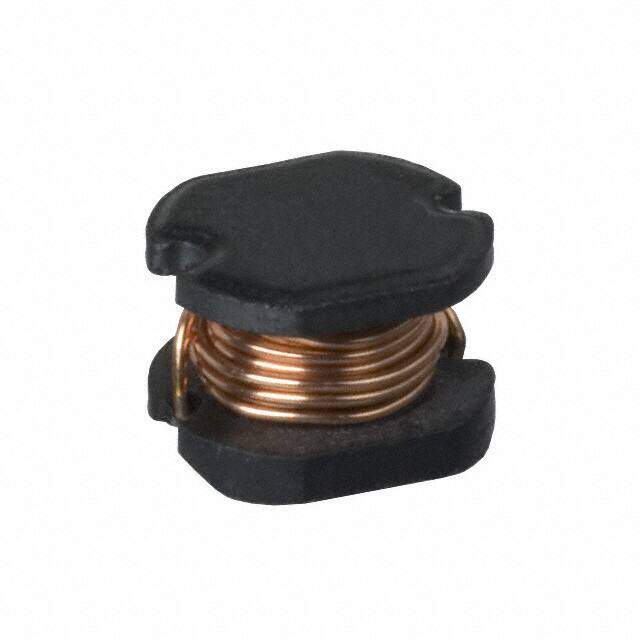

ASPI-0403H-680K-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 68UH 1.170OHM 0.48A
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.4268
≥100 USD $0.391072
≥500 USD $0.35552
≥1000 USD $0.316448
≥3000 USD $0.298637
Inventory: 1105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series ASPI-0403H
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 480mA
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 1.17Ohm Max
Inductance Frequency - Test 100kHz
Dimensions
Height Seated (Max) 0.138 3.50mm
Compliance
RoHS Status RoHS Compliant
