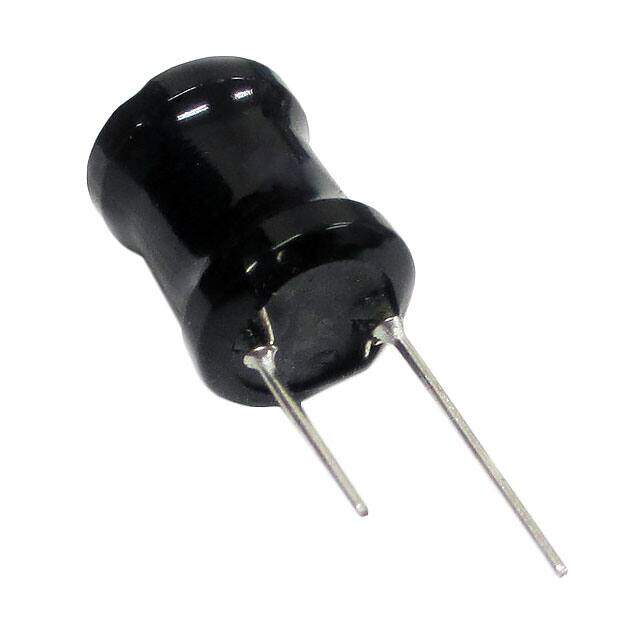

AIUR-16-273K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 27MH 30MA 66 OHM TH
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.52008
≥100 USD $0.385616
≥500 USD $0.277306
≥1000 USD $0.25997
≥3000 USD $0.25131
Inventory: 156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2004
Series AIUR-16
Size / Dimension 0.276Dia 7.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Composition Wirewound
Current Rating (Amps) 30mA
Shielding Unshielded
Current Rating 30mA
Inductance 27mH
Test Frequency 10kHz
DC Resistance (DCR) 66Ohm Max
Inductance Frequency - Test 10kHz
Current - Saturation 33mA
Dimensions
Height Seated (Max) 0.374 9.50mm
Compliance
RoHS Status RoHS Compliant
