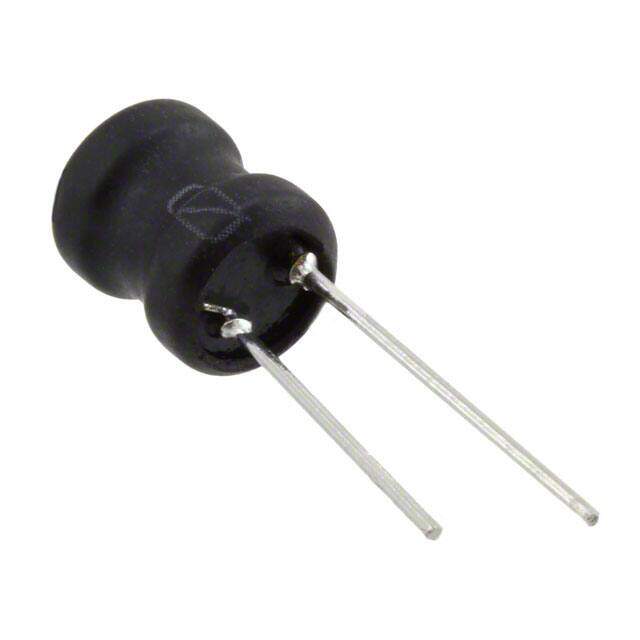

AIUR-12-222K image
Favorite
AIUR-12-222K image
Favorite

AIUR-12-222K

Abracon LLC
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description AIUR-12 Radial Vertical Cylinder 0.283Dia 7.20mm 2.2mH
PDF
/
Inventory: 4341
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.413 10.50mm

Technical

Inductance Frequency - Test 100kHz
Quality Factor-Min (at L-nom) 150
Q @ Freq 30 @ 100kHz
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 1MHz
DC Resistance (DCR) 11Ohm Max
Test Frequency 100kHz
Inductance 2.2mH
Current Rating 110mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.283Dia 7.20mm
Series AIUR-12
Published 2007
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 8 Weeks
