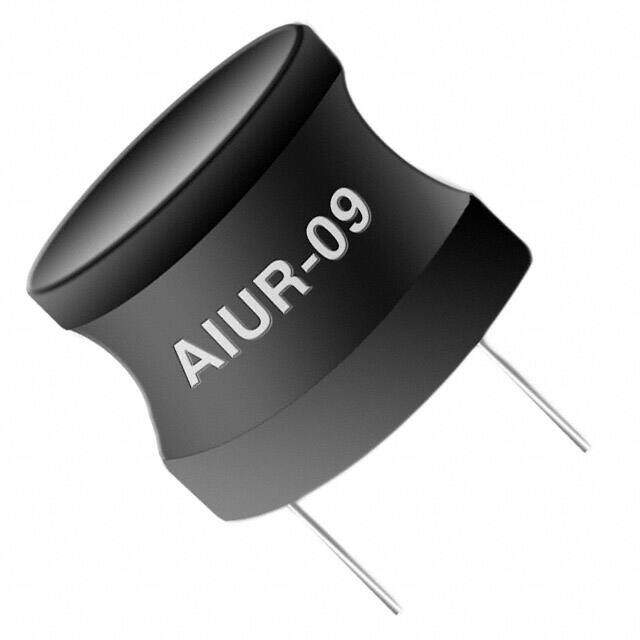

AIUR-09-470M
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-09 Radial Vertical Cylinder 0.394Dia 10.00mm 47muH
PDF
/
Inventory: 8665
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.256 6.50mm
Height 10mm
Technical
Inductance Frequency - Test 2.52MHz
Inductor Application POWER INDUCTOR
Max DC Current 1.7A
DC Resistance (DCR) 180mOhm Max
Test Frequency 2.52MHz
Inductance 47μH
Lead Diameter 600 μm
Lead Length 6mm
Lead Pitch 4mm
Current Rating 1.7A
Construction Cylindrical
Number of Functions 1
Shielding Unshielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series AIUR-09
Published 2007
Packaging Bulk
Operating Temperature -55°C~85°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
