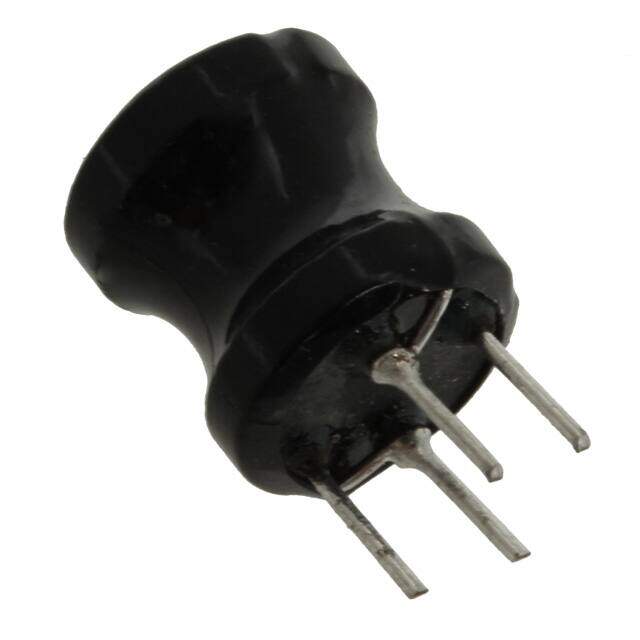

AIUR-08-391K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-08 Radial Vertical Cylinder 0.433Dia 11.00mm 390muH
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.740676
≥1 USD $0.740676
≥10 USD $0.698755
≥100 USD $0.659195
≥500 USD $0.621891
≥1000 USD $0.586683
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series AIUR-08
Size / Dimension 0.433Dia 11.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 860mA
Shielding Unshielded
Current Rating 860mA
Lead Pitch 4mm
Lead Diameter 600 μm
Inductance 390μH
Test Frequency 1kHz
DC Resistance (DCR) 650mOhm Max
Max DC Current 860mA
Lead/Base Style Radial
Inductance Frequency - Test 1kHz
Dimensions
Height 10mm
Height Seated (Max) 0.433 11.00mm
Length 10mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
