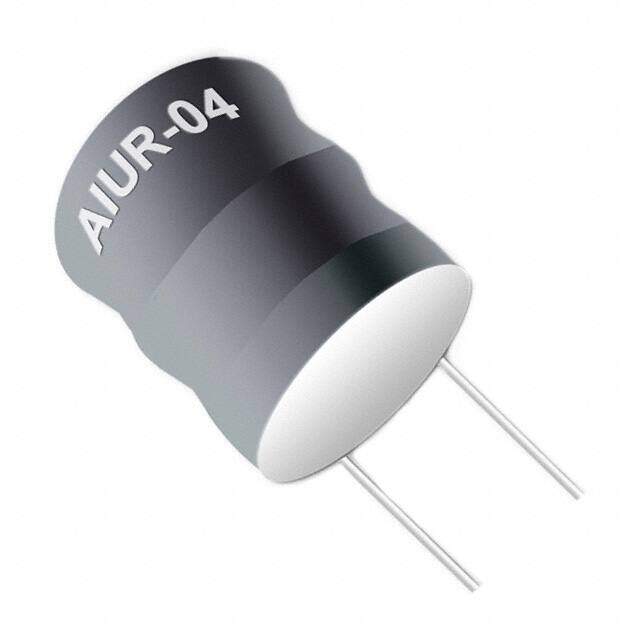

AIUR-04-561J
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-04 Radial Vertical Cylinder 0.335Dia 8.50mm 560muH
PDF
/
Inventory: 2866
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series AIUR-04
Size / Dimension 0.335Dia 8.50mm
Tolerance ±5%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 200mA
Lead Pitch 5mm
Lead Diameter 700 μm
Inductance 560μH
Test Frequency 796kHz
DC Resistance (DCR) 4Ohm Max
Max DC Current 200mA
Frequency - Self Resonant 1.7MHz
Inductor Application RF INDUCTOR
Q @ Freq 30 @ 796kHz
Quality Factor-Min (at L-nom) 80
Inductance Frequency - Test 796kHz
Q Factor 30
Special Feature Q MEASURED AT 50 KHz
Dimensions
Height 11.2mm
Height Seated (Max) 0.441 11.20mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
