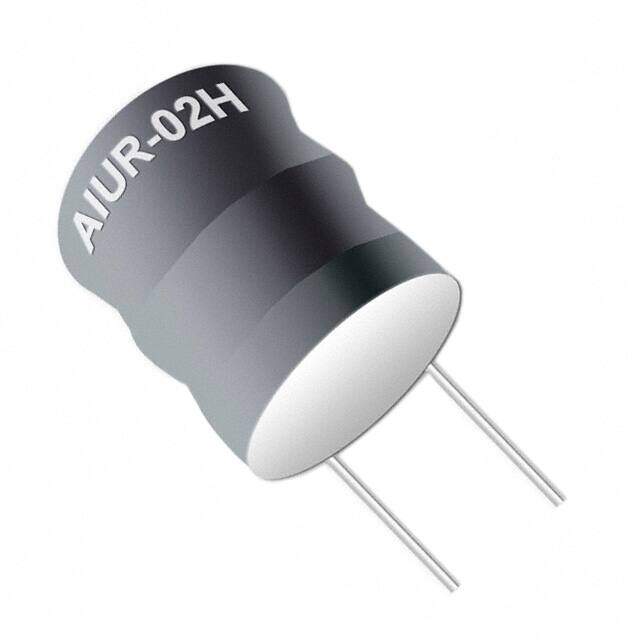

AIUR-02H-331K image
Favorite
AIUR-02H-331K image
Favorite

AIUR-02H-331K

Abracon LLC
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description AIUR-02H Radial Vertical Cylinder 0.335Dia 8.50mm 330muH
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.61072
≥100 USD $0.555456
≥500 USD $0.522192
≥1000 USD $0.433303
≥3000 USD $0.39996
Inventory: 197
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 12mm
Height Seated (Max) 0.472 12.00mm
Height 12mm

Technical

Q Factor 30
Current - Saturation 780mA
Inductance Frequency - Test 790kHz
Lead/Base Style Radial
Q @ Freq 20 @ 790kHz
Max DC Current 780mA
DC Resistance (DCR) 620mOhm Max
Test Frequency 790kHz
Inductance 330μH
Lead Pitch 5mm
Current Rating 390mA
Shielding Unshielded
Current Rating (Amps) 390mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.335Dia 8.50mm
Series AIUR-02H
Published 2002
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 8 Weeks
