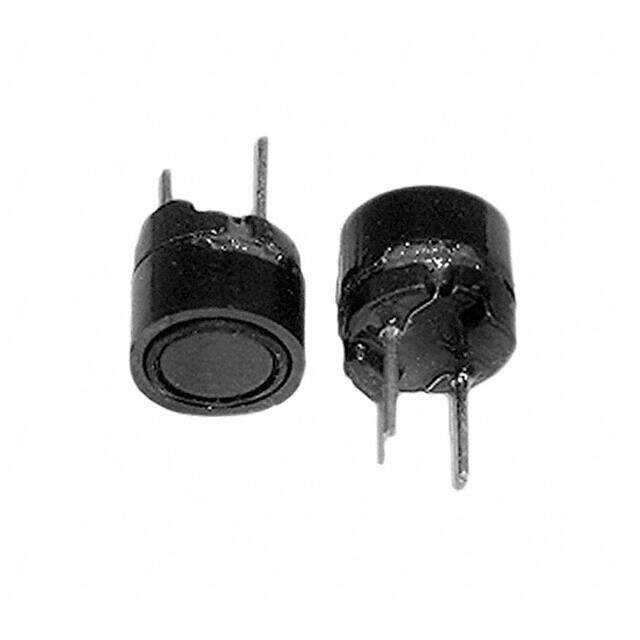

AISR-01-122J
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AISR-01 Radial Vertical Cylinder 0.425Dia 10.80mm 1.2mH
PDF
/
Inventory: 4834
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series AISR-01
Size / Dimension 0.425Dia 10.80mm
Tolerance ±5%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Current Rating 75mA
Lead Pitch 5mm
Inductance 1.2mH
Test Frequency 1kHz
DC Resistance (DCR) 3.7Ohm Max
Max DC Current 75mA
Frequency - Self Resonant 700kHz
Inductor Application FILTER CHOKE
Q @ Freq 70 @ 50kHz
Quality Factor-Min (at L-nom) 70
Inductance Frequency - Test 1kHz
Dimensions
Diameter 10.8mm
Height 14mm
Height Seated (Max) 0.551 14.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
