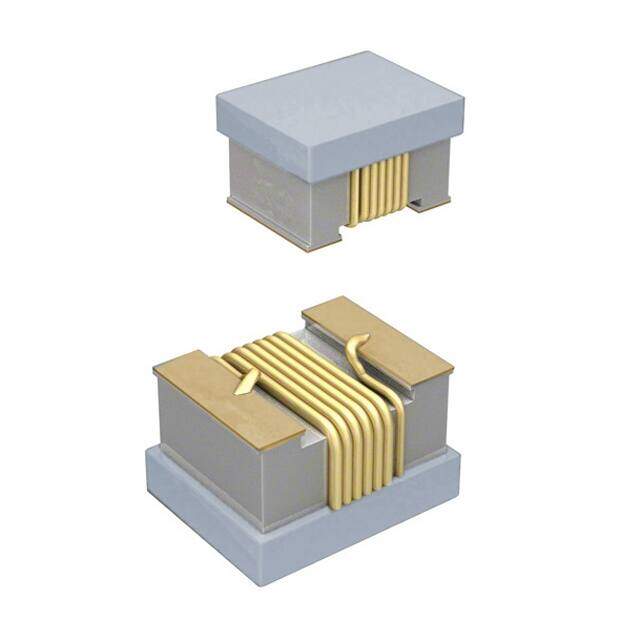

AISM-1812-R39M-T
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AISM-1812 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 390nH
PDF
/
Inventory: 4289
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2012
Series AISM-1812
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Construction Molded Chip
Current Rating 575mA
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 390nH
Test Frequency 25.2MHz
DC Resistance (DCR) 300mOhm Max
Max DC Current 575mA
Frequency - Self Resonant 150MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 40 @ 25.2MHz
Quality Factor-Min (at L-nom) 40
Q Factor 40
Dimensions
Height 3.2mm
Height Seated (Max) 0.110 2.80mm
Compliance
RoHS Status RoHS Compliant
