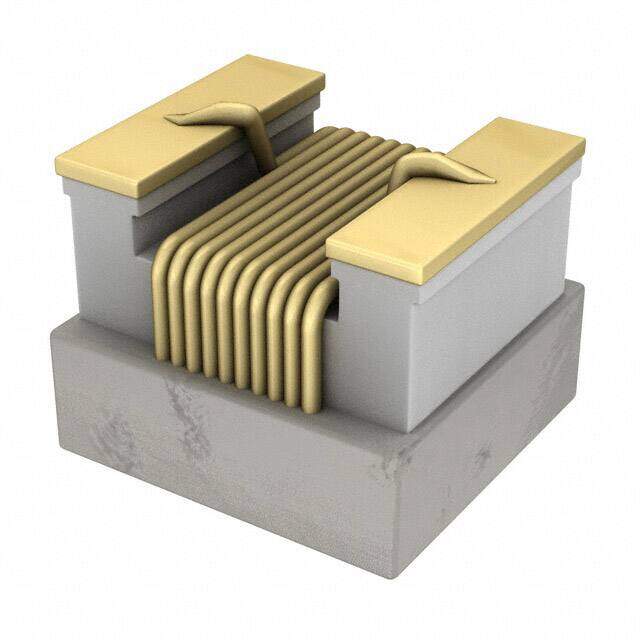

AISC-1008F-1R2G-T image
Favorite
AISC-1008F-1R2G-T image
Favorite

AISC-1008F-1R2G-T

Abracon LLC
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description AISC-1008F 1008 (2520Metric) 0.115Lx0.110W 2.92mmx2.79mm 1.2muH
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.21208
≥100 USD $0.196064
≥500 USD $0.179696
≥1000 USD $0.1584
≥3000 USD $0.153542
Inventory: 1140
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Material - Core Ferrite

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2008
Series AISC-1008F
Size / Dimension 0.115Lx0.110W 2.92mmx2.79mm
Tolerance ±2%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 650mA
Shielding Unshielded
Current Rating 650mA
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 1.2μH
Test Frequency 7.9MHz
DC Resistance (DCR) 800mOhm Max
Max DC Current 1A
Frequency - Self Resonant 250MHz
Q @ Freq 37 @ 50MHz
Inductance Frequency - Test 7.9MHz
Q Factor 48

Dimensions

Height 2.286mm
Height Seated (Max) 0.090 2.29mm
Length 2.8956mm
Width 2.794mm

Compliance

RoHS Status RoHS Compliant
