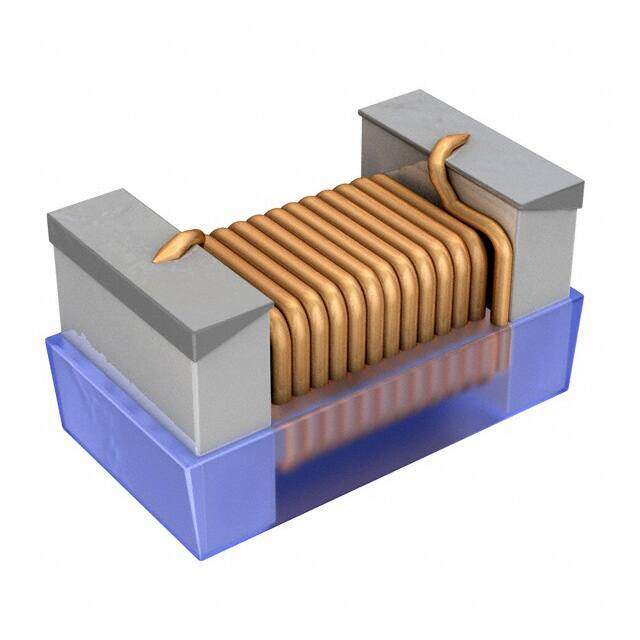

AISC-0603F-R25J-T
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 250NH 690MA 170 MOHM
PDF
/
Inventory: 6812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2008
Series AISC-0603F
Size / Dimension 0.063Lx0.039W 1.60mmx1.00mm
Tolerance ±5%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 690mA
Inductance 250nH
Test Frequency 7.9MHz
DC Resistance (DCR) 170mOhm Max
Frequency - Self Resonant 910MHz
Inductance Frequency - Test 7.9MHz
Dimensions
Height Seated (Max) 0.047 1.20mm
Compliance
RoHS Status RoHS Compliant
