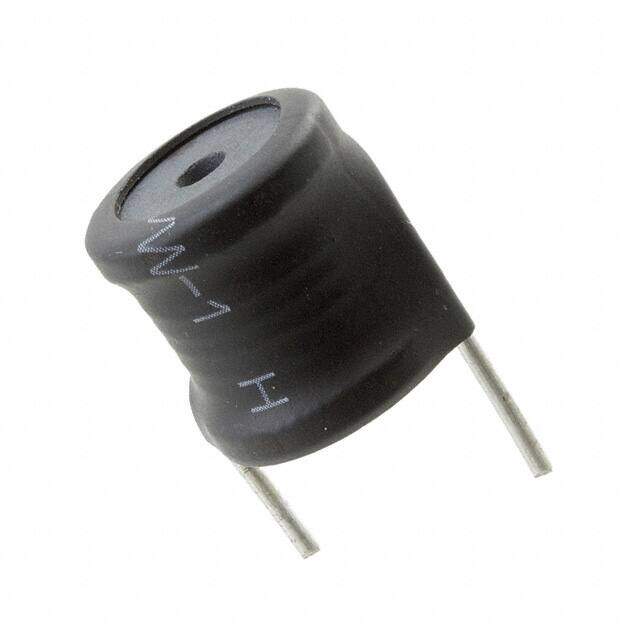

AIRD-02-152K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIRD-02 Radial Vertical Cylinder 0.827Dia 21.00mm 1.5mH
PDF
/
Inventory: 6403
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2011
Series AIRD-02
Size / Dimension 0.827Dia 21.00mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Construction Cylindrical
Current Rating 800mA
Lead Pitch 19mm
Lead Length 12.5mm
Inductance 1.5mH
Test Frequency 1kHz
DC Resistance (DCR) 1.26Ohm Max
Max DC Current 2.4A
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Dimensions
Diameter 21mm
Height 21.0058mm
Height Seated (Max) 0.827 21.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
