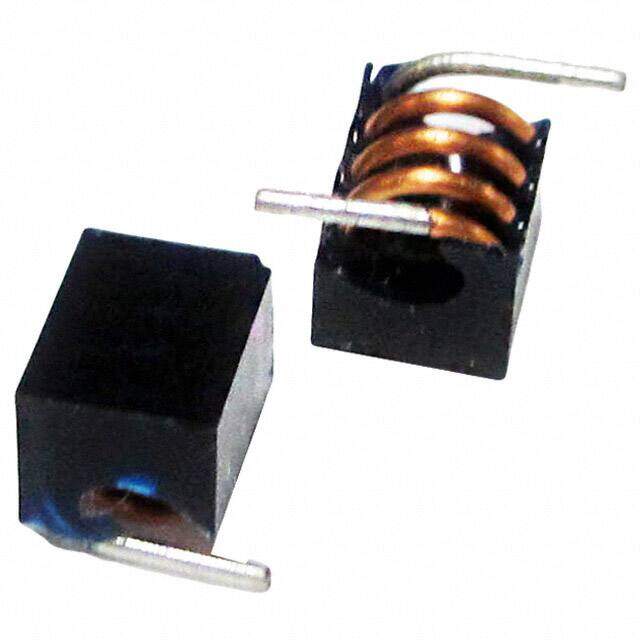

AIAC-1512C-2N5K-T
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIAC-1512C Nonstandard 0.130Lx0.098W 3.30mmx2.50mm 2.5nH
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.571407
≥1 USD $0.571407
≥10 USD $0.53906
≥100 USD $0.508551
≥500 USD $0.479763
≥1000 USD $0.452614
Inventory: 1080
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Air
Technical
Operating Temperature -40°C~125°C
Packaging Digi-Reel?
Published 2006
Series AIAC-1512C
Size / Dimension 0.130Lx0.098W 3.30mmx2.50mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 4.8A
Shielding Unshielded
Current Rating 4.8A
Lead Pitch 3.3mm
Inductance 2.5nH
Test Frequency 150MHz
DC Resistance (DCR) 0.8mOhm Max
Max DC Current 4.8mA
Frequency - Self Resonant 3GHz
Q @ Freq 145 @ 150MHz
Inductance Frequency - Test 150MHz
Q Factor 145
Dimensions
Height Seated (Max) 0.110 2.80mm
Length 3.302mm
Width 2.4892mm
Compliance
RoHS Status RoHS Compliant
