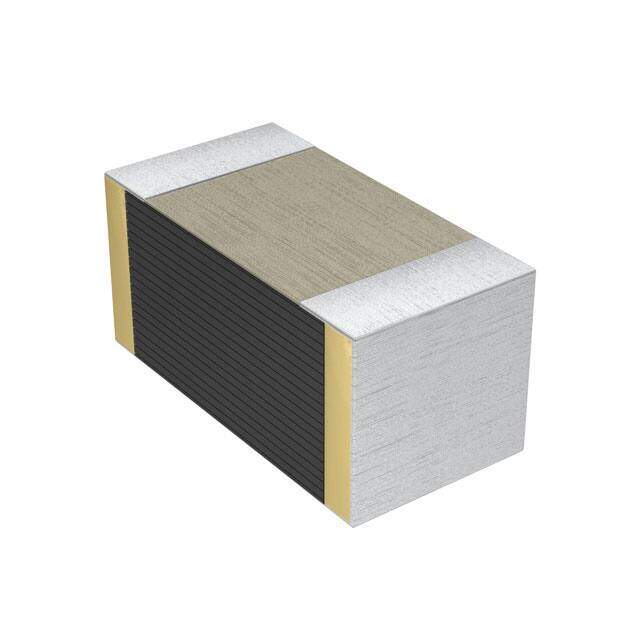

ECH-U1C393GX5
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Capacitors / Film Capacitors
Description
ECH-U(X) FILM CAPACITOR 1206 (3216Metric) film capacitor 0.126Lx0.063W 3.20mmx1.60mm ±2% 0.039muF 16V
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.39864
≥100 USD $0.335808
≥500 USD $0.273416
≥1000 USD $0.22785
≥3000 USD $0.191866
Inventory: 1115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series ECH-U(X)
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
Capacitance 0.039μF
Voltage - Rated DC 16V
Packing Method TR, 7 INCH
Depth 1.6mm
Voltage - Rated AC 16V
Case Code (Metric) 3216
Case Code (Imperial) 1206
Capacitor Type FILM CAPACITOR
Dielectric PPS
Insulation Resistance 3GOhm
Size Code 1306
Voltage 16V
Dissipation Factor 0.6 %
Dimensions
Height 1.5mm
Height Seated (Max) 0.067 1.70mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

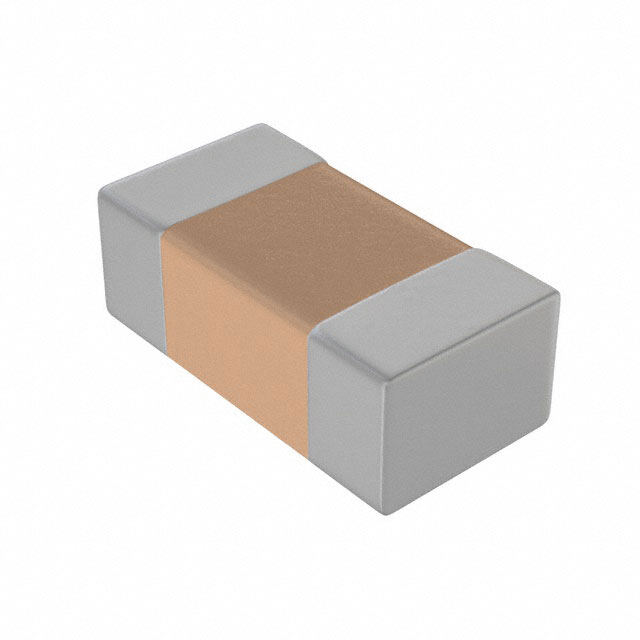

Alternative Model
