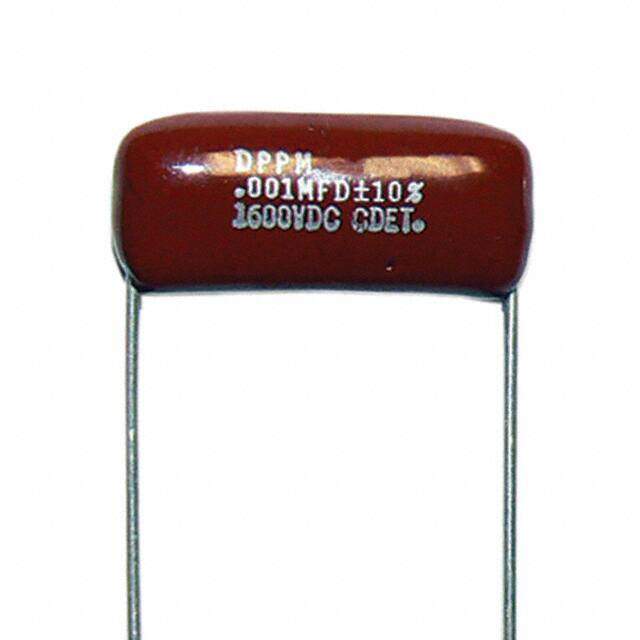

DPPM10D33K-F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Film Capacitors
Description
Radial FILM CAPACITOR DPPM 450V 3300pF ±10% 0.984Lx0.276W 25.00mmx7.00mm
PDF
/
Inventory: 9563
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Voltage - Rated AC 450V
Voltage - Rated DC 1kV
Capacitance 3300pF
Additional Feature RATED AC VOLTAGE: 450
Applications High Frequency, Switching; High Pulse, DV/DT; Snubber
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination PC Pins
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.984Lx0.276W 25.00mmx7.00mm
Series DPPM
Published 2006
Packaging Bulk
Operating Temperature -40°C~105°C
Dissipation Factor 10 %
Rated (DC) Voltage (URdc) 1000V
Lead Spacing 0.827 21.00mm
Dielectric PP
Capacitor Type FILM CAPACITOR
Lead Pitch 21.0058mm
Physical
Dielectric Material Polypropylene (PP), Metallized
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Height Seated (Max) 0.551 14.00mm
Height 12.5mm
