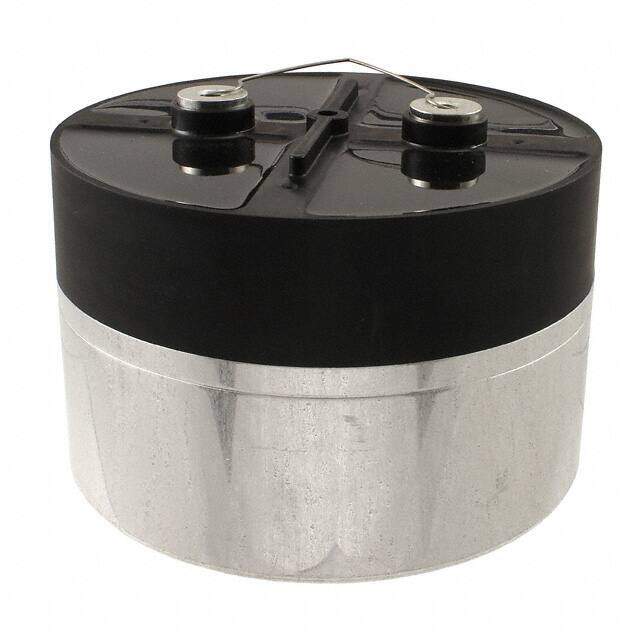

947D261K112BDMSN
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Film Capacitors
Description
Radial Can FILM CAPACITOR 947D 230V 260muF ±10% 3.543Dia 90.00mm
PDF
/
Buying Options
Total Price: USD $95.36
Unit Price: USD $95.3568
≥1 USD $95.3568
≥10 USD $89.4366
≥100 USD $85.49097
Inventory: 98
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Terminal Shape BINDING POST
Number of Pins 2
Dielectric Material Polypropylene (PP), Metallized
Technical
Operating Temperature -45°C~85°C
Packaging Bulk
Published 2014
Series 947D
Size / Dimension 3.543Dia 90.00mm
Tolerance ±10%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Threaded, Female
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications DC Link, DC Filtering
Capacitance 260μF
Voltage - Rated DC 1.1kV
Reach Compliance Code unknown
Voltage - Rated AC 230V
Lead Pitch 45.0088mm
Capacitor Type FILM CAPACITOR
Dielectric PP
ESR (Equivalent Series Resistance) 1.5mOhm
Lead Spacing 1.772 45.00mm
Rated (DC) Voltage (URdc) 1100V
Dimensions
Diameter 90mm
Height Seated (Max) 3.465 88.00mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
